Heavy-Duty Large-Channel X-Ray Inspection System
Model: XR-6550G
QuickFacts
• Model: XR-6550G
• Product Type: Heavy-duty large-channel X-ray inspection
• Typical Products: Big boxes, large bags, outer cartons and heavy packages
• Key Size / Channel: 650×500mm
• Inspection Targets: Ferrous metal, Non-ferrous metal, Stainless steel, Glass fragments, Stone particles, Ceramic pieces
• Installation Type: End-of-line or inline integration
• Configuration: Final tunnel, speed, rejection and safety setup should be confirmed by product and site layout
› Food X-Ray Inspection
› Bulk Material X-Ray
› Fish Bone X-Ray
› Bottle & Can X-Ray
› Industrial X-Ray
› Industrial X-Ray
› Conveyor Metal Detector
› Pipeline Metal Detector
› Free Fall Metal Detector
› Needle Detector
› Dynamic Checkweigher
› Food Checkweigher
› Package Checkweigher
› Sealing Inspection System
› Combo Inspection System
› Air Jet
› Pusher
› Flap
› Drop-Down
› Customized Rejector
Product Overview

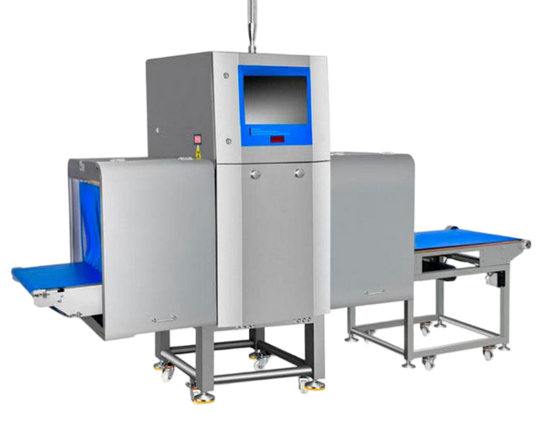

The LITUBO XR-6550G is a heavy-duty large-channel X-ray inspection system for large packages, cartons and heavier products. It is designed for customers who need both a wide inspection tunnel and stronger conveying capacity.
For end-of-line inspection, carton inspection or large package applications, the XR-6550G helps customers inspect dense foreign objects inside larger products before warehousing, shipment or final delivery.
Typical Applications
• Large packaged food
• Big boxes and outer cartons
• Large bags
• Heavy packaged products
• Multi-pack products
• End-of-line inspection before warehousing or shipment
Detection Targets
• Ferrous metal
• Non-ferrous metal
• Stainless steel
• Glass fragments
• Stone particles
• Ceramic pieces
• Dense foreign objects inside cartons or large packages
Working Principle
Large packages or cartons pass through the inspection tunnel. The X-ray system scans the product and analyzes density differences inside the package. When foreign objects are detected, the system can trigger sound and light alarm, conveyor stop or optional rejection output.
Technical Specifications
Working Principle
Quotation Reminder
Final configuration depends on carton size, product weight, tunnel size, conveyor width, inspection speed, detection target, rejection method and site layout. Please contact LITUBO for model confirmation, configuration review and quotation.
Configuration Options
• Heavy-duty conveyor structure
• Large-channel inspection tunnel
• Rejection system according to product weight
• Conveyor height and direction according to line layout
• Optional heavy-load pusher, flap, drop-down or custom rejection method
• Integration with carton conveyor or final packing line
The XR-6550G is suitable for installation after cartoning, case packing or final packing. It can support final inspection before warehousing or shipment, especially where customers need to inspect large packages without opening them.
