Large-Channel Food X-Ray Inspection System
Model: XR-600D
QuickFacts
• Model: XR-600D
• Product Type: Large-channel food X-ray foreign object detection
• Typical Products: Wide packaged food, trays, cartons, larger bags
• Key Size / Channel: To be configured according to product size
• Inspection Targets: Ferrous metal, Non-ferrous metal, Stainless steel, Glass fragments, Stone particles, Ceramic pieces
• Installation Type: Inline or end-of-line integration
• Configuration: Final tunnel, speed, rejection and safety setup should be confirmed by product and site layout
› Food X-Ray Inspection
› Bulk Material X-Ray
› Fish Bone X-Ray
› Bottle & Can X-Ray
› Industrial X-Ray
› Industrial X-Ray
› Conveyor Metal Detector
› Pipeline Metal Detector
› Free Fall Metal Detector
› Needle Detector
› Dynamic Checkweigher
› Food Checkweigher
› Package Checkweigher
› Sealing Inspection System
› Combo Inspection System
› Air Jet
› Pusher
› Flap
› Drop-Down
› Customized Rejector
Product Overview

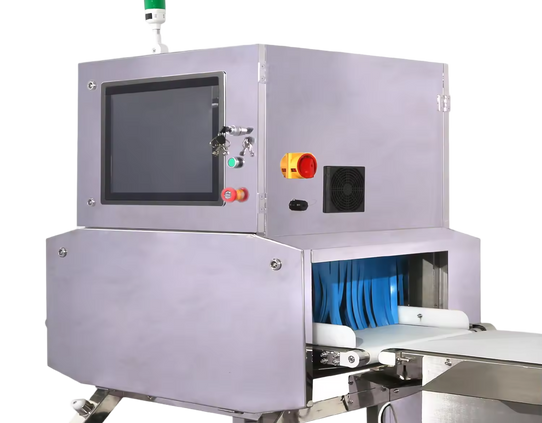

The LITUBO XR-600D is a large-channel food X-ray inspection system designed for wider packaged products and production lines that require more passage space than standard food X-ray models.
It is suitable for customers handling larger food packages, wide trays, meat products, frozen food, ready-to-eat food, sauces, condiments or products that require a broader inspection tunnel while still maintaining inline X-ray foreign object inspection.
Typical Applications
• Wide packaged food
• Meat products
• Frozen food
• Ready-to-eat food
• Sauces and condiments
• Larger trays, bags and cartons
• End-of-line food inspection
Detection Targets
• Ferrous metal
• Non-ferrous metal
• Stainless steel
• Glass fragments
• Stone particles
• Ceramic pieces
• Bones depending on product type
• Hard rubber and hard plastic depending on density
Working Principle
The product passes through a larger X-ray inspection tunnel. The system analyzes density differences inside the package and identifies suspicious dense contaminants. When a foreign object is detected, the system can provide alarm, stop signal or rejection output according to line configuration.
Technical Specifications
Working Principle
Quotation Reminder
Final configuration depends on product width, height, weight, package material, line speed, tunnel size, rejection method and site layout. Please contact LITUBO for configuration review before quotation.
Configuration Options
• Larger tunnel height and width
• Wider conveyor belt according to package size
• Rejection system according to product weight and line speed
• Conveyor height according to existing line
• Integration with carton line, packaging line or conveyor system
• Customized layout according to factory space
The XR-600D can be installed where standard X-ray tunnels are not large enough for the customer’s product. It is suitable for medium-to-large food packages and can be used before cartoning, after sealing or before final shipment.
