Standard Food X-Ray Foreign Object Detector
Model: XR-500D
QuickFacts
• Model: XR-500D
• Product Type: Standard food X-ray foreign object detection
• Typical Products: Packaged food, pouches, trays, cartons
• Key Size / Channel: 400×250mm or 500×300mm
• Inspection Targets: Ferrous metal, Non-ferrous metal, Stainless steel, Glass fragments, Stone particles, Ceramic pieces
• Installation Type: To be confirmed according to application
• Configuration: Final tunnel, speed, rejection and safety setup should be confirmed by product and site layout
› Food X-Ray Inspection
› Bulk Material X-Ray
› Fish Bone X-Ray
› Bottle & Can X-Ray
› Industrial X-Ray
› Industrial X-Ray
› Conveyor Metal Detector
› Pipeline Metal Detector
› Free Fall Metal Detector
› Needle Detector
› Dynamic Checkweigher
› Food Checkweigher
› Package Checkweigher
› Sealing Inspection System
› Combo Inspection System
› Air Jet
› Pusher
› Flap
› Drop-Down
› Customized Rejector
Product Overview

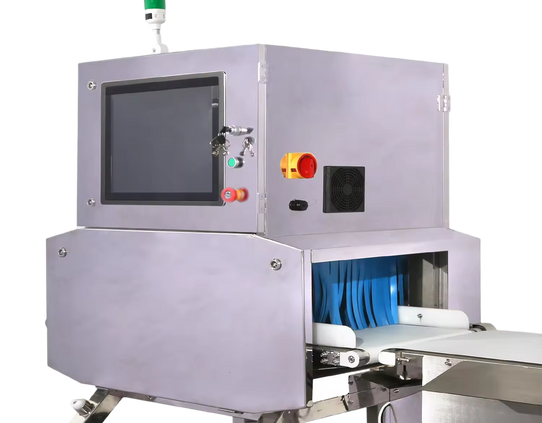

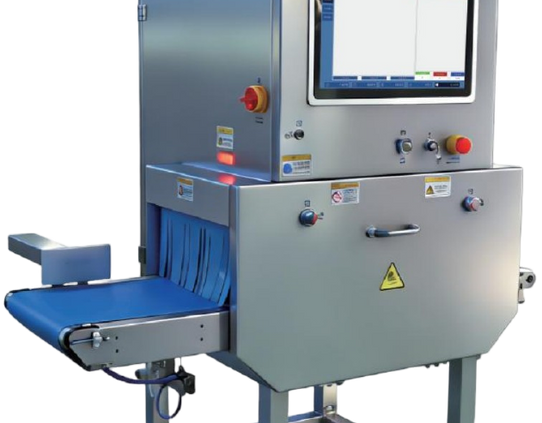

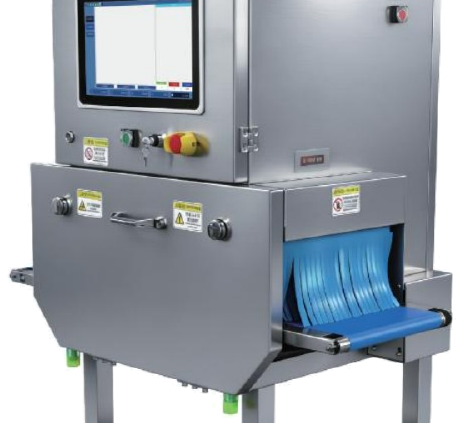

The LITUBO XR-500D is a standard food X-ray foreign object detector for packaged food products moving through an inline conveyor. It is designed for customers who need a general-purpose X-ray inspection machine for daily production, final product inspection and contamination risk control.
Compared with metal detection alone, X-ray inspection can help detect not only metal contaminants, but also dense non-metal foreign objects such as glass, stone, ceramic, bone fragments, hard rubber and hard plastic depending on product density and package type.
Typical Applications
• Packaged food inspection
• Dairy food, sauces and condiments
• Meat and frozen food
• Bakery, snack and prepared food products
• Pouches, trays, bags and cartons
• Final inspection before packing or shipment
Detection Targets
• Ferrous metal
• Non-ferrous metal
• Stainless steel
• Glass fragments
• Stone particles
• Ceramic pieces
• Bones depending on product type
• Hard rubber and hard plastic depending on density
Working Principle
Products pass through the inspection tunnel on a conveyor belt. The X-ray system uses penetrating ability and image recognition to distinguish density differences inside the package. When foreign objects are detected, the system can display the position in the image and trigger sound and light alarm, conveyor stop or a rejection signal.
Technical Specifications
Working Principle
Quotation Reminder
Actual detection performance may vary according to product density, package material, line speed and production environment. Final configuration should be confirmed by product sample, tunnel size, detection requirement, rejection method and site layout.
Configuration Options
• 400×250mm or 500×300mm tunnel selection according to product size
• Rejection system according to product weight and production speed
• Alarm stop or automatic rejection
• LAN and USB data interface
• Integration with checkweigher, metal detector, packaging line or conveyor system
The XR-500D is suitable for installation after packaging, sealing or weighing. It can be used as a final inspection point before cartoning, warehousing or shipment, helping customers improve outgoing quality control.
Line Integration
