Fish Bone Dual-Energy X-Ray Inspection System
Model: XR-4000D
QuickFacts
• Model: XR-4000D
• Product Type: Fish bone and foreign object X-ray detection
• Key Size / Channel: 400×100mm or 400×200mm
• Inspection Targets: Fish bones, Thin bones, Bone fragments, Metal contaminants, Glass fragments, Stone particles
• Installation Type: Inline fish processing line integration
• Configuration: Final tunnel, speed, rejection and safety setup should be confirmed by product and site layout
› Food X-Ray Inspection
› Bulk Material X-Ray
› Fish Bone X-Ray
› Bottle & Can X-Ray
› Industrial X-Ray
› Industrial X-Ray
› Conveyor Metal Detector
› Pipeline Metal Detector
› Free Fall Metal Detector
› Needle Detector
› Dynamic Checkweigher
› Food Checkweigher
› Package Checkweigher
› Sealing Inspection System
› Combo Inspection System
› Air Jet
› Pusher
› Flap
› Drop-Down
› Customized Rejector
Product Overview

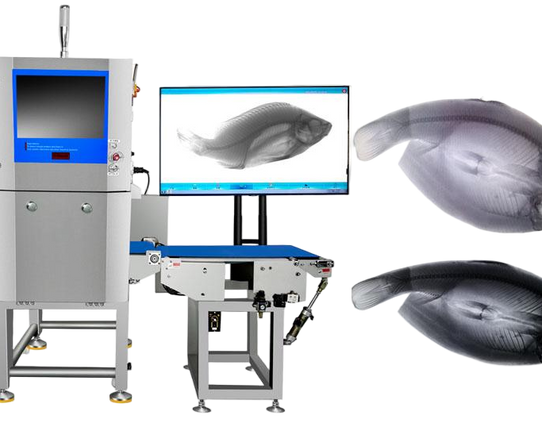

The LITUBO XR-4000D is a specialized X-ray inspection system for fish bone and foreign object detection in fish and seafood processing. It is designed for customers who need to identify dangerous bones, thin bones and dense contaminants that are difficult to find through manual inspection alone.
For fish processors, missed bones can directly affect consumer safety, customer complaints and brand reputation. The XR-4000D helps customers improve inspection consistency by displaying suspicious bone or foreign object positions on the inspection image.
Typical Applications
• Fish fillets
• Fish portions
• Seafood processing lines
• Raw or processed fish products
• Frozen or chilled fish products
• Bone and foreign object inspection before packing
Detection Targets
• Fish bones
• Thin bones
• Bone fragments
• Metal contaminants
• Glass fragments
• Stone particles
• Ceramic pieces
• Other dense foreign objects depending on product structure
Working Principle
Fish products pass through the inspection tunnel on a food-grade conveyor belt. The X-ray system analyzes density differences between fish meat and potential bones or foreign objects. When a suspicious bone or contaminant is detected, the system displays its position and triggers alarm or rejection according to the selected configuration.
Technical Specifications
Working Principle
Quotation Reminder
Actual bone detection performance depends on fish species, bone size, product thickness, product density, freezing condition, belt speed and inspection settings. Please provide product samples or application information to LITUBO for configuration review before quotation.
Configuration Options
• Tunnel height according to fish product thickness
• Conveyor belt width according to product format
• 80kV / 210W or optional 350W generator according to detection requirement
• External HD screen for image review
• Alarm stop or rejection output according to line layout
• Integration with trimming, packing or final inspection section
The XR-4000D can be installed after cutting, trimming, deboning or before final packaging. It is suitable for fish processing plants that need a more consistent inspection method for bone control and product safety.
