Bulk Material X-Ray Inspection System
Model: XR-3500D
X-Ray Inspection Systems
Metal Detection Equipment
Checkweighing Solutions
Line Integration Support
QuickFacts
• Model: XR-3500D
• Product Type: Bulk material X-ray foreign object detection
• Typical Products: Loose, unpacked and bulk food materials
• Inspection Targets: Ferrous metal, Non-ferrous metal, Stainless steel, Glass fragments, Stone particles, Ceramic pieces
• Installation Type: Bulk feeding and inline inspection integration
• Configuration: Final tunnel, speed, rejection and safety setup should be confirmed by product and site layout
› Food X-Ray Inspection
› Bulk Material X-Ray
› Fish Bone X-Ray
› Bottle & Can X-Ray
› Industrial X-Ray
› Industrial X-Ray
› Conveyor Metal Detector
› Pipeline Metal Detector
› Free Fall Metal Detector
› Needle Detector
› Dynamic Checkweigher
› Food Checkweigher
› Package Checkweigher
› Sealing Inspection System
› Combo Inspection System
› Air Jet
› Pusher
› Flap
› Drop-Down
› Customized Rejector
Product Overview

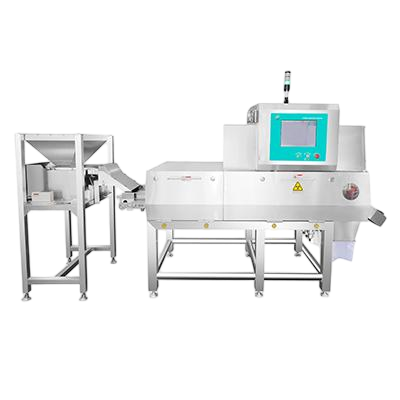

The LITUBO XR-3500D is a bulk material X-ray inspection system designed for loose, unpacked and continuously fed food products. It is suitable for customers who need to detect and reject foreign objects before products enter final packaging, mixing, roasting, freezing or further processing.
For bulk food processors, one contaminated stone, glass piece, ceramic fragment or metal particle can create customer complaints, equipment damage and brand risk. The XR-3500D helps inspect loose products on a continuous line and remove contaminated material automatically through air-jet rejection.
This model is especially suitable for nuts, grains, beans, rice, peanuts, raisins, sea salt flakes, frozen fruit pieces and frozen vegetable chunks.
Typical Applications
• Nuts and peanuts
• Beans and rice
• Grains and seeds
• Raisins and dried fruit
• Sea salt flakes
• Frozen fruit chunks
• Frozen vegetable chunks
• Loose food materials before packing
• Bulk food sorting and cleaning lines
Detection Targets
• Ferrous metal
• Non-ferrous metal
• Stainless steel
• Glass fragments
• Stone particles
• Ceramic pieces
• Bone fragments
• Hard rubber
• Hard plastic
• Other dense foreign objects according to product density
Working Principle
Bulk products are fed onto the conveyor through a feeding system. The product layer passes through the X-ray inspection area. The system analyzes density differences between the food material and possible foreign objects. When a contaminant is detected, the system triggers alarm and automatic rejection. High-speed air-jet rejectors remove the contaminated part from the product stream.
Technical Specifications
Working Principle
Quotation Reminder
Final configuration depends on product type, bulk flow condition, product layer thickness, detection target, conveyor speed, rejector quantity, installation space and upstream / downstream equipment. Please contact LITUBO for product sample review, configuration selection and quotation.
Configuration Options
• Detection tunnel width according to product flow and layer thickness
• Air-jet rejector quantity according to product speed and rejection accuracy
• Vibrating feeder according to bulk material flow behavior
• Product recipe setting according to product density and contaminant type
• Conveyor height and direction according to production line layout
• UPS and safety interlock configuration according to factory requirement
• Integration with upstream feeding, cleaning, sorting or packing equipment
The XR-3500D is typically installed before final packaging or after cleaning, sorting, freezing, roasting or primary processing. It is suitable for customers who need to inspect loose materials before they become packed products, helping reduce contamination risk earlier in the production process.
Line Integration
