Compact Food X-Ray Inspection System
Model: XR-200D
X-Ray Inspection Systems
Metal Detection Equipment
Checkweighing Solutions
Line Integration Support
QuickFacts
• Model: XR-200D
• Product Type: Compact food X-ray foreign object detection
• Typical Products: Small packaged food, pouches, trays and small boxes
• Key Size / Channel: To be configured according to product size
• Inspection Targets: Ferrous metal, Non-ferrous metal, Stainless steel, Glass fragments, Stone particles, Ceramic pieces
• Installation Type: Inline conveyor integration
• Configuration: Final tunnel, speed, rejection and safety setup should be confirmed by product and site layout
› Food X-Ray Inspection
› Bulk Material X-Ray
› Fish Bone X-Ray
› Bottle & Can X-Ray
› Industrial X-Ray
› Industrial X-Ray
› Conveyor Metal Detector
› Pipeline Metal Detector
› Free Fall Metal Detector
› Needle Detector
› Dynamic Checkweigher
› Food Checkweigher
› Package Checkweigher
› Sealing Inspection System
› Combo Inspection System
› Air Jet
› Pusher
› Flap
› Drop-Down
› Customized Rejector
Product Overview

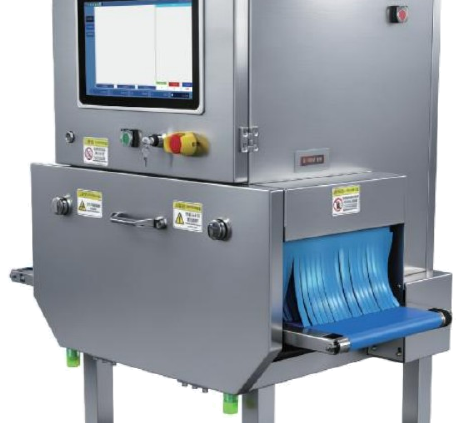

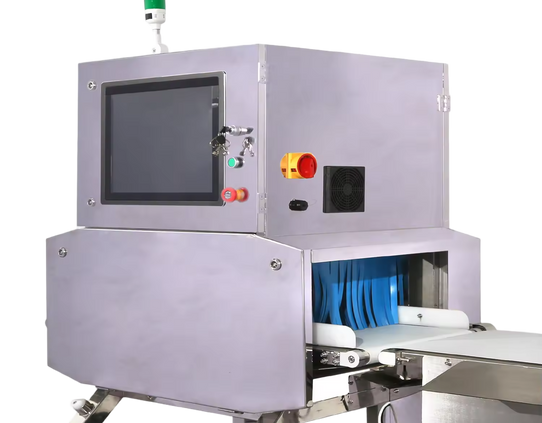

The LITUBO XR-200D is a compact food X-ray inspection system designed for small packaged products and production lines with limited installation space. It helps food manufacturers detect dense foreign objects inside packaged products without opening or damaging the package.
For customers producing small bags, trays, pouches or lightweight food packs, the XR-200D provides a practical inspection solution when the line requires a smaller footprint, simple operation and reliable foreign object control.
Typical Applications
• Small packaged food
• Lightweight pouches and trays
• Bakery and snack products
• Confectionery and chocolate products
• Small ready-meal packs
• Food lines with limited installation space
Detection Targets
• Ferrous metal
• Non-ferrous metal
• Stainless steel
• Glass fragments
• Stone particles
• Ceramic pieces
• Dense rubber or hard plastic
• Bone fragments depending on product type
Working Principle
Products pass through the X-ray inspection tunnel on the conveyor belt. The system analyzes density differences between the product and possible foreign objects. When a suspicious dense contaminant is detected, the system can trigger a sound and light alarm, stop the conveyor or activate an automatic rejection device according to the selected configuration.
Technical Specifications
Working Principle
Quotation Reminder
Final configuration depends on product size, package type, line speed, detection target, tunnel size, rejection method and site layout. Please contact LITUBO for model selection, configuration review and quotation.
Configuration Options
• Tunnel size according to product height and width
• Conveyor belt width according to package size
• Alarm stop or automatic rejection
• Air jet, pusher, flap or custom rejection method
• Integration with checkweigher, metal detector or conveyor system
• Food-grade conveyor belt option
The XR-200D can be installed after filling, sealing, weighing or primary packaging. It is suitable for compact food production lines where the customer wants to add X-ray foreign object inspection without occupying too much floor space.
Line Integration
