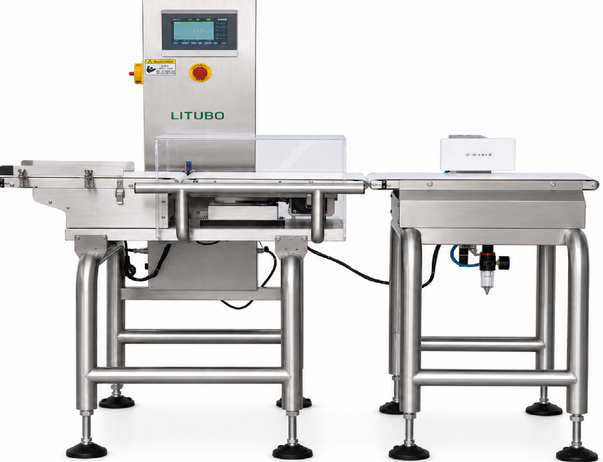

Medium-Range Online Checkweigher
Model: LT-300
X-Ray Inspection Systems
Metal Detection Equipment
Checkweighing Solutions
Line Integration Support
QuickFacts
• Model: LT-300
• Weighing Range: 5–3000 g
• Reference Accuracy: ±0.3 to ±0.5 g depending on product
• Maximum Throughput: Up to 80 pcs/min
• Belt Width: 300 mm
• Main Material: SUS304 stainless steel
› Food X-Ray Inspection
› Bulk Material X-Ray
› Fish Bone X-Ray
› Bottle & Can X-Ray
› Industrial X-Ray
› Industrial X-Ray
› Conveyor Metal Detector
› Pipeline Metal Detector
› Free Fall Metal Detector
› Needle Detector
› Dynamic Checkweigher
› Food Checkweigher
› Package Checkweigher
› Sealing Inspection System
› Combo Inspection System
› Air Jet
› Pusher
› Flap
› Drop-Down
› Customized Rejector
Product Overview
Use the LITUBO LT-300 when products from 5 g to 3 kg need reliable inline weight control on a 300 mm conveyor. We combine dynamic weighing, recipe-based limits, automatic rejection and optional line communication to remove underweight, overweight and incomplete packs before cartoning or shipment.
Typical Applications
• Prepared-food trays and meal packs
• Frozen food and meat products
• Large pouches and bags
• Bottles, jars and containers
• Pharmaceutical or cosmetic multipacks
• Cartons and packaged goods up to 3 kg
Detection Targets
• Underweight and overweight products
• Incorrect filling quantity
• Missing components or packs
• Incomplete cartons or multipacks
• Products outside recipe limits
• Weight grading or pass/fail inspection
Working Principle
Products are spaced and conveyed across the weighing section, where a load-cell system measures each item dynamically. The controller compares the measured value with the selected recipe limits. Products within tolerance continue to the next process, while non-conforming products trigger an alarm and the configured rejection device.
Technical Specifications
Working Principle
Quotation Reminder
Send us product photos, dimensions, target weight, tolerance, line speed, conveyor height and preferred rejection method. We will verify product stability and configure the weighing range, conveyor layout, rejection system and communication interfaces for your line.
Configuration Options
• Touch-screen HMI with user-friendly operation
• Chinese-English interface; additional languages can be customized
• Weight compensation function
• Three-level user management with password control
• Storage for up to 100 product recipes
• Automatic rejection of non-conforming products
• Optional USB, RS485, RS232 or LAN communication
• Optional sound and light alarm
• Rejector selection according to product size, weight and line speed
• Common project options include air blow, pusher, drop-down, flap or shift-lever rejection
Line Integration
The LT-300 can be installed after primary packaging, tray sealing, capping or labeling. It is suitable before cartoning or as a final outgoing-weight inspection point.
