Automatic Case Erector

KX-01L

Ask Questoin

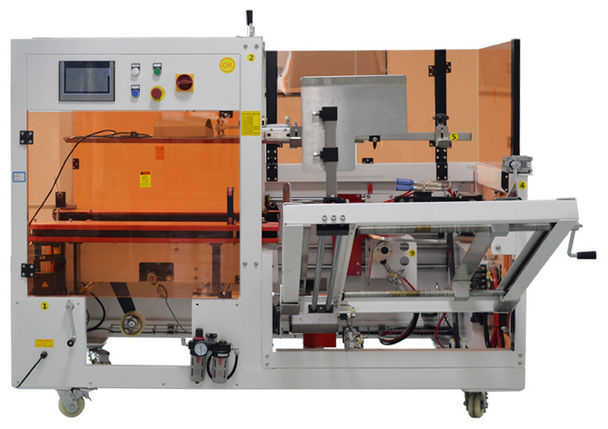

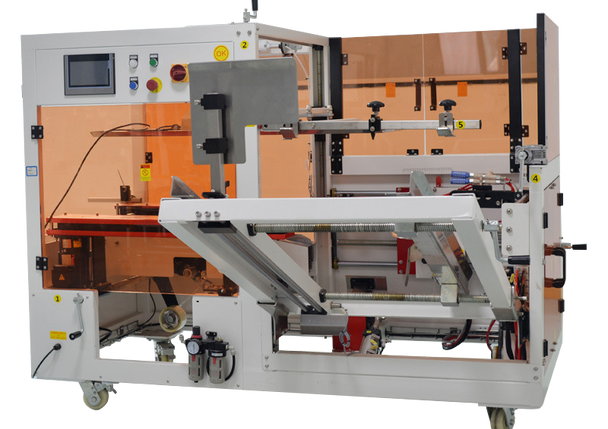

KX-01L automatically opens flat carton blanks, forms the carton, folds the bottom flaps and seals the carton bottom with tape. It is suitable for automatic packing lines that need a reliable carton forming station before case packing or carton sealing.

Automatic Carton Opening, Forming and Bottom Sealing

Automatically opens flat carton blanks, forms the carton shape, folds the bottom flaps and seals the carton bottom with tape.

uilt for End-of-Line Packaging Lines

Designed to supply formed cartons to downstream case packers, carton sealers, conveyors, strapping machines and complete packaging lines.

Stable Forming with Reliable Bottom Sealing

Stable carton forming, smooth bottom flap folding and secure tape sealing help reduce carton deformation and poor bottom sealing.

Flexible Options for Different Production Speeds

The range includes standard automatic case erectors, enhanced models, continuous blank feeding models, high-speed models and semi-automatic forming support.

Key Features and Benefits

Automatic Carton Opening and Forming

Opens flat carton blanks and forms them into cartons automatically, reducing manual carton setup before packing.

PLC and Display Control

PLC with display control makes machine operation and production management easier for operators.

Labor-Saving Packing Support

Reduces manual carton forming, lowers labor intensity and helps improve line consistency.

Bottom Flap Folding and Tape Sealing

Folds the lower flaps and seals the carton bottom with tape in the same process, preparing cartons for downstream packing.

Designed for High-Volume Carton Preparation

Suitable for production lines where cartons need to be opened, formed and bottom-sealed continuously.

Optional Hot-Melt Glue System

Can be configured with a hot-melt glue system when glue-based carton bottom sealing is required.

Technical Specifications

Specifications are for reference only. Final configuration should be confirmed according to carton size, tape width, power supply and line layout.

specNameEn	KX-01L	KX-02	KX-01Z	KX-03	KX-01B
Machine Type	Automatic Case Erector	Automatic Case Erector with Stable Forming System	Automatic Case Erector with Continuous Carton Blank Feeding	Automatic High-Speed Case Erector	Semi-Automatic Case Former and Bottom Sealer
Power Supply	220V / 380V, 50/60Hz	220V / 380V, 50/60Hz	220V / 380V, 50/60Hz	220V / 380V, 50/60Hz	220V / 380V, 50/60Hz
Power	300W	500W	800W	800W	200W
Applicable Carton Size	L200–450 × W150–400 × H100–350 mm	L200–450 × W150–400 × H100–350 mm	L200–400 × W150–400 × H100–400 mm	L200–400 × W150–400 × H100–400 mm	L200–500 × W150–400 × H100–600 mm
Erecting / Sealing Speed	8–12 cartons/min	12–18 cartons/min	15–25 cartons/min	20–45 cartons/min	5–8 cartons/min
Tape Width	48 / 60 mm	48 / 60 / 72 mm	48 / 60 mm	48 / 60 mm	48 / 60 mm
Air Supply	0.6–0.7 MPa	0.6–0.7 MPa	0.6–0.7 MPa	0.6–0.7 MPa	0.6-0.7MPa
Machine Dimensions	L2000 × W1900 × H1450 mm	L2300 × W2050 × H1450 mm	L3500 × W1800 × H1300 mm	L3700 × W1990 × H1850 mm	L1780 × W850 × H1800 mm
Main Function	Carton opening, forming, bottom folding and tape sealing	Stable carton forming, bottom folding and tape sealing	Continuous blank feeding, forming, folding and bottom sealing	High-speed carton forming, folding and bottom sealing	Semi-automatic case forming and bottom sealing support
Recommended Application	Standard automatic carton forming lines	Lines requiring stable forming and tape sealing	Continuous carton blank feeding applications	High-output automatic packaging lines	Manual-assisted packing stations
Hot-Melt Glue Option	Available	Available	Available	Available	Tape sealing support

Resources & Downloads

Downloads

Document.pdf

KX-01L Automatic Case Erector Datasheet PDF

Document.pdf

KX-01L Automatic Case Erector Datasheet PDF

Document.pdf

KX-01L Automatic Case Erector Datasheet PDF

Discover More

Related Products

FAQs

Is LT-CF-A1001L suitable for automatic packaging lines?

Yes. KX-01L is designed to open, form and bottom-seal cartons before they enter downstream packing equipment.

What is the operating speed of KX-01L?

The listed speed is 8–12 cartons per minute, depending on carton size and operating conditions.

What information should I provide before selecting a case erector?

Please provide carton length, width and height, carton weight, required speed, tape width, power supply and whether the machine will be used as a standalone station or connected to a packing line

What carton size range can KX-01L handle?

Can KX-01L use hot-melt glue sealing?

Yes. It can be configured with a hot-melt glue system when the application requires glue sealing instead of tape sealing.

Can a case erector be integrated with downstream packaging equipment?

Yes. Case erectors can work with case packers, carton sealers, conveyors, strapping machines, palletizers and stretch wrappers to build a continuous end-of-line packaging process.
